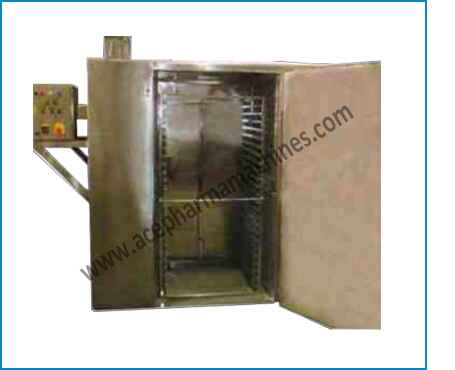

An Air Tray Dryer is used
for the best drying results in conventional
process. It
consists of a double-walled cabinet with one or two
doors. The gap between two walls is filled with light resin-bounded fibreglass wool
insulation material to avoid heat loss. The doors are provided with gaskets to avoid air
leakages from the front side of the door. Stainless steel trays are
placed inside the
chamber. cGMP model dryers
are designed to dry specific products.
Capacity : Lab model to suit 10kg powder - 6, 12, 24,
48, 96 and 192 trays. Standard, GMP & cGMP models available with SS 304/SS, 316/MS internals
and externals.
Construction : External: 2mm thick; internal:
2mm thick.
Surface Finish : External: polished to
180 grit man finish; internal: buffed to 220 grit mirror finish.
Inlet & Outlet : Pharmaceutical and
industrial tray dryers have a 5-micron pre filter at the inlet and a manually adjustable
damper at the exhaust.
Doors : Doors are provided at the front and/or rear side of
the dryer. The door lips are lined with silicon rubber gaskets to prevent air leakages.
Suitable locking arrangement is provided for the doors.
Air Circulation : This is done by
specially designed re-circulation blowers inside the dryer. Blower capacity, static and
design depend on the size / model of dryer.
Heating : Dryers are supplied with either steam /
electric / thermic fluid / hot water heating system. Suitable heating coils / calorifiers
are provided.
Temperature Control : This is
done by an electronic digital temperature controller fitted to the control panel. The
temperature control in the dryer is fully automatic.
Trays : These are available in SS 304/316. All trays are
fully dry-pressed and have curved corners. Trays are buffed to a mirror finish. They are
also available in aluminium / polypropylene / FRP / MS galvanised according to client
requirements.
Trolley : A trolley is provided in the dryers to
accommodate trays. Trolley tracks are used to load and unload the trays into the dryer.
Electronic Panel : An automatic
control panel is fitted on the side of the dryer. It consists of starters, contactors,
safety relays, circuit breakers, indicating lamps, push buttons, timers, controllers etc.
Backed by our efficient workforce, we are capable of manufacturing, supplying and
exporting Air tray Dryer. Available in various models, these products are known for their
longer service life, corrosion & abrasion resistant and easy maintenance. Our Air tray Dryer
can also be customized as per the specifications laid down by the customers. We also check
all the products on various parameters to ensure flawlessness.
Application area :
• Chemical industry
• Automobile industry.
• Pharmaceutical
industry.
Further Details :
• The fan of the dryer is made of Mild Steel, AISI 304 / 316 and other material.
• The internal side of fan and radiators is covered with mesh to give complete
safety on operations.
• The internal surface of the dryer is rounded, which result
in least airflow resistance and low pressure.
• The outer body of the product is
provided with rounded edges.
• The shafts are well balanced to provide optimum
functional usage.
Technical Specification
Capacity |
12 |
24 |
48 |
96 |
192 |
Tray Size |
16" X 32" X 11/4" in SS 304/316 quality
|
Motor H.P. |
0.5 |
0.5 |
1 |
1HP X 2 Nos. |
2HP X 2 Nos. |
No.of Trolleys |
Nil |
Nil/1 |
1 |
2 |
2 |
Heating Load KW 100 0C |
3 |
6 |
9 |
18 |
36 |
200 0 C |
6 |
9 |
15 |
24 |
42 |
300 0 C |
9 |
12 |
21 |
30 |
48 |
